"Sequential input" PlugIT

The "Sequential input" PlugIT allows to define and then to validate an events sequence.
It can be used for exemple in order to complete key combinaisons.

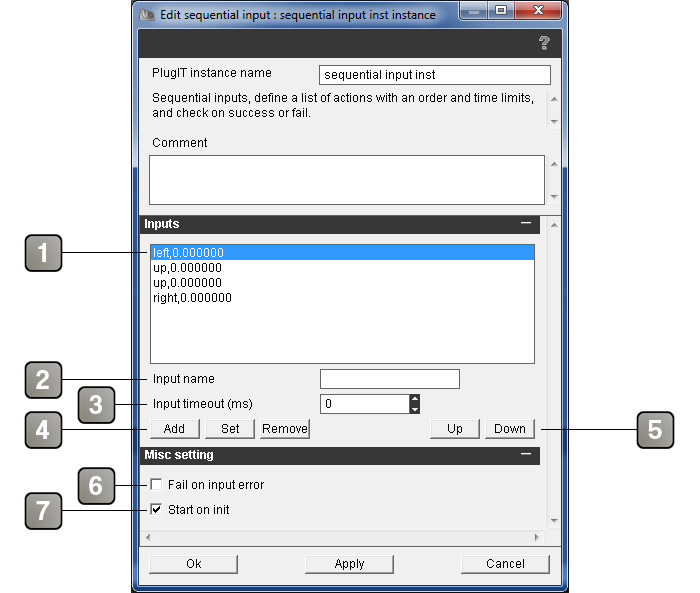

Parameters

1

Input list of the sequence.

2

Input name.

3

Maximum delay to validate the input. If set to 0, no maximum delay for the input

4

Adds, modifies or removes an input.

5

Moves up or down an input in the list.

6

Stops the sequence when an error occurs. The delay may be too long or the selection of an input is wrong.

7

Starts the sequence control when the PlugIT is launched.




Event

Success

Sends if the sequence is validated.

Failed

Sends if the sequence is not validated. The delay may be too long or the selection of an input is wrong.

Waiting for "Input"

For each Input, this event is triggered when this Input is waiting in the sequence.

"Input" valided

This event is triggered when this Input is validated in the sequence.




Action

Start

Starts the sequence control.

Stop

Stops the sequence control.

Pause

Pauses the sequence control.

Reset

Resets the sequence control.

"Input"

Input of the PlugIT.
