"GPIO LCD" PlugIT
The GPIO LCD PlugIT allows to control an Dot Matrix LCD display like HD44780U and similar with the Raspberry PI GPIO pins.

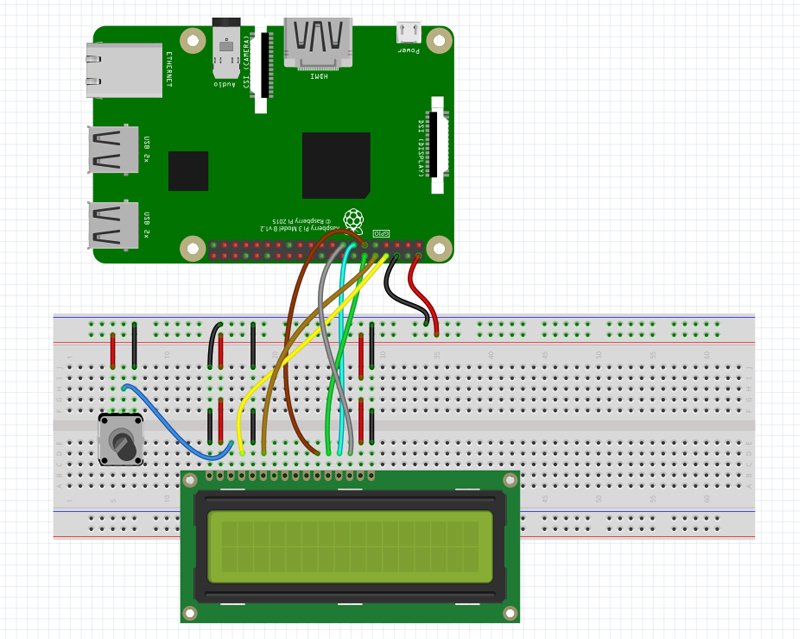

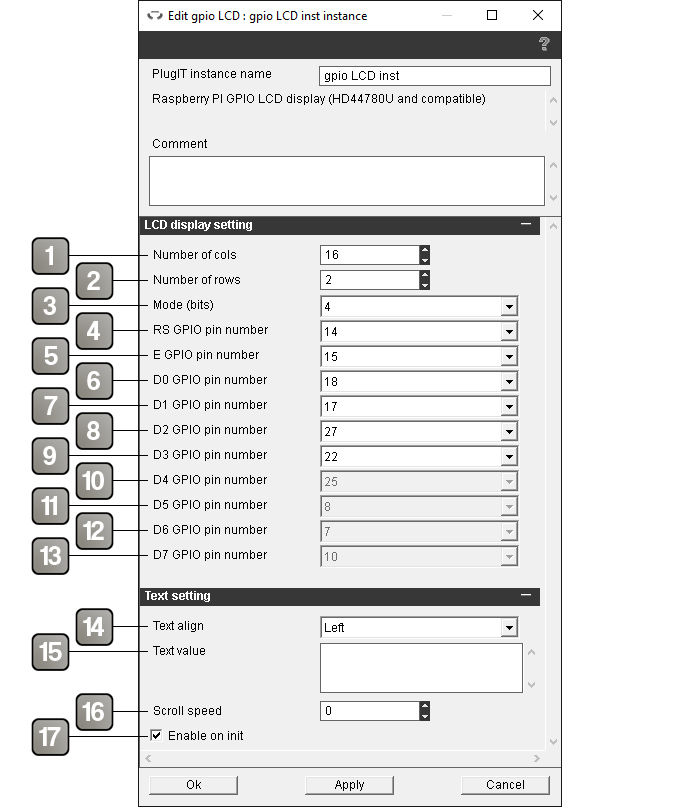

Parameters |
|
1 |
Number of available cols on the LCD display. |
2 |
Number of available rows on the LCD display. |
3 |
LCD display mode, 4 or 8 bits. |
4 |
Raspberry PI GPIO pin number connected to RS pin of the LCD display. |
5 |
Raspberry PI GPIO pin number connected to E pin of the LCD display. |
6 |
Raspberry PI GPIO pin number connected to D0 pin of the LCD display. |
7 |
Raspberry PI GPIO pin number connected to D1 pin of the LCD display. |
8 |
Raspberry PI GPIO pin number connected to D2 pin of the LCD display. |
9 |
Raspberry PI GPIO pin number connected to D3 pin of the LCD display. |
10 |
Raspberry PI GPIO pin number connected to D4 pin of the LCD display. |
11 |
Raspberry PI GPIO pin number connected to D5 pin of the LCD display. |
12 |
Raspberry PI GPIO pin number connected to D6 pin of the LCD display. |
13 |
Raspberry PI GPIO pin number connected to D7 pin of the LCD display. |
14 |
Text alignment. left, center or right. |
15 |
Default text. |
16 |
Speed of the text translation. |
15 |
Enable the LCD display on startup. |
Actions |
|
Set text |
Replace the LCD display text, the text is set in link parameter. |
Add text |
Add text to the LCD display, the text is set in link parameter. |
Enable |
Enable the LCD display. |
Disable |
Disable the LCD display. |
Use
