"Local network" PlugIT

The "Local network" plugIT allows to send user-defined messages on the local network and to synchronise objects on several applications.

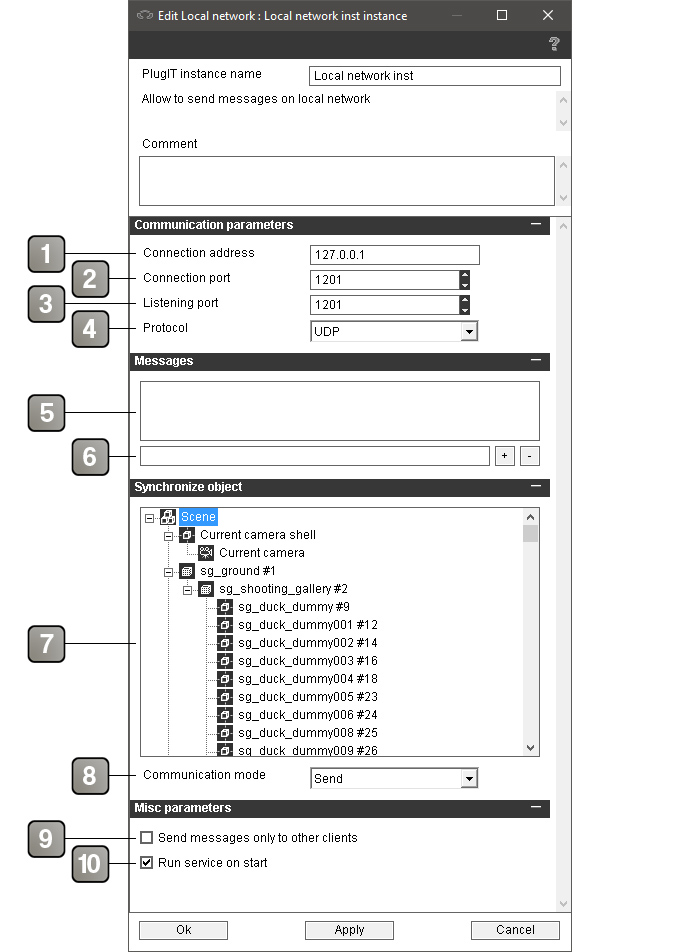

Parameters

1

Server connection address.

2

Server connection port (In Android, the port must be greater than 1024).

3

Server listening port (In Android, the port must be greater than 1024).

4

Choice of the type of communication (TCP or UDP).

5

Network messages list.

6

Add and delete network messages.

7

List of the objects of the scene. Double left click to select an object, right click for more selection options.

8

Objects synchronization mode choice.

9

Send network messages to other clients only.

10

Start the service on application startup.

Generic action/event

For each network message defined by the user a send action and an message event are created. The action has the shape send " my message name " and the event the shape " my message name " message



Action

Send "my message name"

Sends the link parameter as a network message named "my message name".

Enable

Open the network service.

Disable

Close the network service.

Change connection address

Allow to change connection address on format(IPv4:Port).



Event

"my message name" message

Triggered on the reception of a network message named "my message name".

Connected

Triggered when the plugIT succesfuly connects to the given address.

Disconnected

Triggered when the plugIT is disconnected from the given address.
