"Walkthrough" PlugIT
The "Walkthrough" PlugIT allows to enables camera movements while in a first-person view.
Movements can be made by the keyboard or by a mouse click and hold with the mouse.
The "Shift" (Maj) key allows to look around if the key is held. The "Ctrl" key allows to modify the view height.
Space allows to jump.
This function only need one instance and don't need any specific ressources, so it should be used in the « Scene » group. By following the previous method, add a "Walkthrough" PlugIT, and edit the instance.

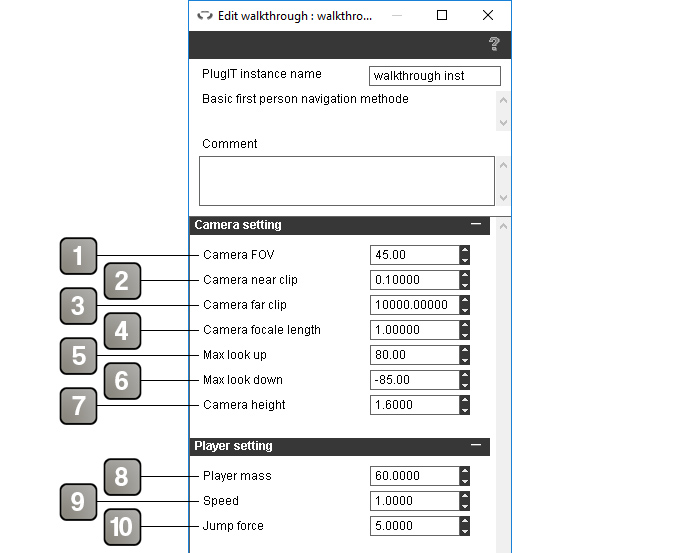

Parameters |
|
1 |
Allows to set the camera focus angle. |
2 |
Minimal displaying distance of the camera. |
3 |
Maximal displaying distance of the camera. |
4 |
Camera focal length |
5 |
Maximal Look up. |
6 |
Maximal Look down. |
7 |
Camera height |
8 |
Player mass. |
9 |
Player speed (ogre unity). |
10 |
Player jump force (ogre unity). |

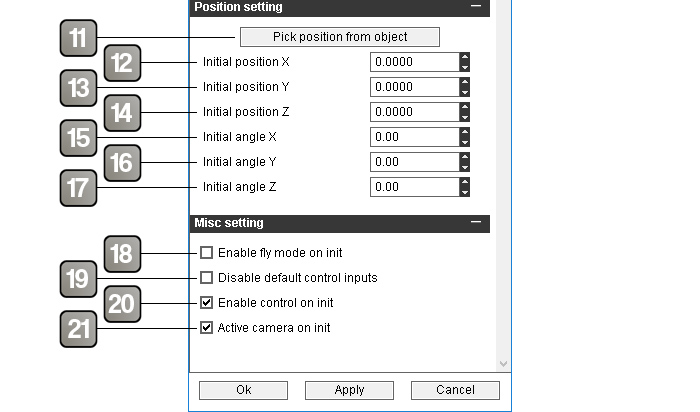

Parameters |
|
11 |
Allows to center the camera on an object coordinates. |
12 |
Initial position on X. |
13 |
Initial position on Y. |
14 |
Initial position on Z. |
15 |
Initial angle on X. |
16 |
Angle initial en Y |
17 |
Angle initial en Z |
18 |
Enables the "fly" mode when the application starts. |
19 |
Disables the controlers by default (keyboard, mouse and multi-touch). |
20 |
Enables the view control when the application starts. |
21 |
Enables the camera when the application starts. |
Action |
|
Control |
Gets control events, like the ones emitted from the Wiimote. |
Disable |
Disable the PlugIT. |
Enable |
Enable the PlugIT. |
Jump |
The player jumps. |
Set Anglelimit |
Allows to modify the maximal view angle. For this, edit the link. |
Set position |
Changes the camera position. For this, edit the link. |
Disable control |
Disables the control. |
Enable control |
Enables the control. |
Set run speed |
Changes the movement speed when the player runs. The new speed is defined in the link parameter. |
Active camera |
Enables the navigation camera. |
Deactivate camera |
Disables the navigation camera. |
Set camera clipping |
Changes the camera near and/or far clipping. |
Set camera FOV |
Changes the camera focal angle, the new focal angle is defined in the link parameter. |
Set camera focal length |
Changes the camera focal length longueur de focale de la caméra, the new focal length is defined in the link parameter |
Enable fly mode |
Enables the navigation mode "fly". |
Disable fly mode |
Disables the navigation mode "fly". |
Get position |
Gets the current position in the link parameter of the "Position" event. |
Event |
|
Jumped |
Sends when the user jumps. |
Position |
Sends when the "Get position" is enabled, the link parameter contains : the X Y Z positions on the first line and the X Y Z orientation on the second. |
