"Label" PlugIT
The "Label" PlugIT allows to create a label with a text in the 3D world, always facing the camera.

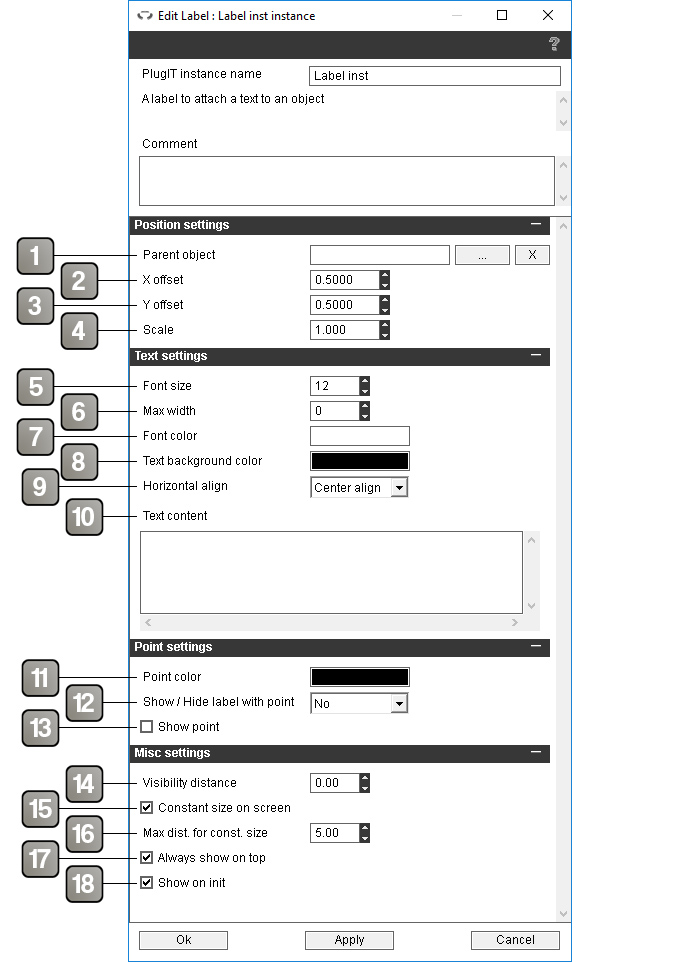

Parameters |
|
1 |
Object to which the label is attached. If you do not want to attach the label to a visible object, use a dummy. |
2 |
Horizontal offset of the label relative to its rotation center. The offset is relative to the size of the label, so an offset of 0.5 will move the label of 50% its size on the right (so the rotation center will be aligned on the left border of the label) |
3 |
Vertical offset of the label relative to its rotation center. The offset is relative to the size of the label, so an offset of 0.5 will move the label of 50% its size up (so the rotation center will be aligned on the bottom border of the label) |
4 |
Scale of the label. |
5 |
Font size. |
6 |
Maximum width of the label. If the text is too long, it will be displayed on several lines. |
7 |
Font color. |
8 |
Background color. |
9 |
Text alignment. |
10 |
Text content. |
11 |
Point color. |
12 |
Depending of the chosen option, the label could be shown or hidden by clicking the point, double-clicking it or hovering it with the mouse. |
13 |
If checked a point is shown at the rotation center of the label. |
14 |
Label maximum visibility distance. If set to 0, the label will be visible regardless of the distance. |
15 |
If checked, the label will keep the same size on screen independently from the distance. |
16 |
Distance up to which the label will keep a constant size on screen. If set to 0, the label will keep a constant size on screen regardless of the distance. |
17 |
If checked, the label will be displayed on top even if it is located behind another object. |
18 |
Show the label on application startup. |
Action |
|
Set text |
Changes the text of the label. |
Set object |
Changes the parent object of the label. |
Set offset |
Changes the offset of the label. |
Set max width |
Changes the maximum width of the label. |
Hide label |
Hides the label. |
Show label |
Shows the label. |
Hide point |
Hides the point. |
Show point |
Shows the point. |
Event |
|
Shown |
Triggered when the label is shown. |
Hidden |
Triggered when the label is hidden. |
