"Area" PlugIT
The "Area" PlugIT allows to create a button with an activation delay. In order to use it, you will need an image composed with two states (see below). By default, this PlugIT reacts when the mouse enter in the activation zone.
This PlugIT works in multi-touch.
|
|
|

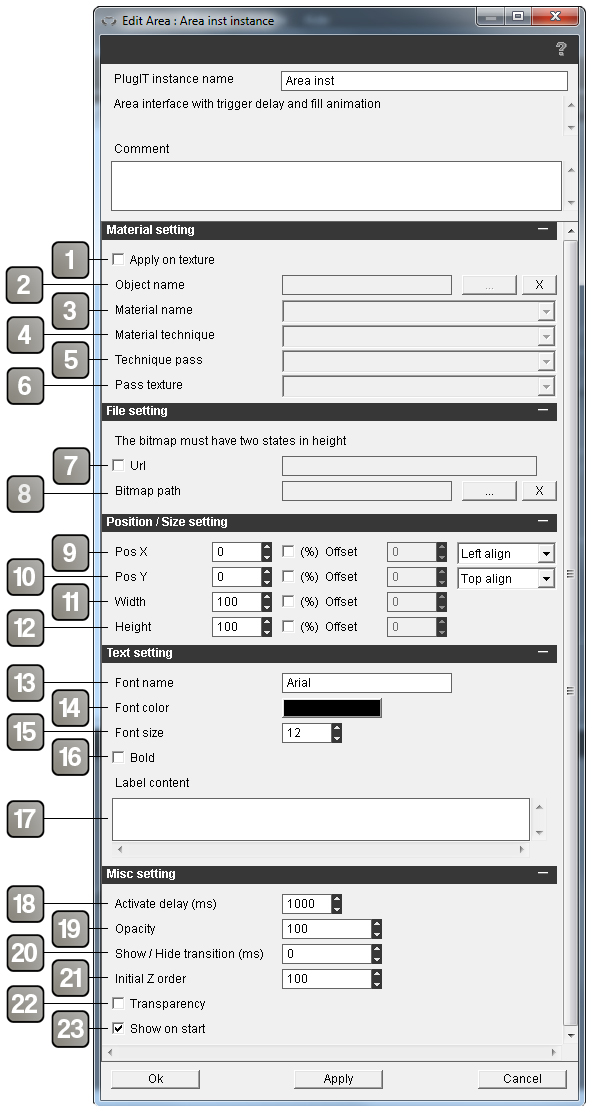

Parameters |
|
1 |
Allows you to set an area to an object. This parameter enables the (2) (3) (4) (5) (6) points and locks the (9) (10) points. |
2 |
Allows to search an object in your scene you want to apply an area. |
3 | <
Allows to apply the area on a material. |
4 |
Allows to apply an area on a material technique. |
5 |
Allows to apply the area on a pass technique. |
6 |
Allows to apply the area on a pass texture. |
7 |
Enable/Disable the url use. Use the "http://" url type in the text field. |
8 |
Allows to use an image on your computer. |
9 |
Set the X position of your area. By default, units are in pixels. But you can check "%" in order to set in percentage and enable the offset parameter; this one is set in pixel and allows to slide your area (here Right to Left). A drop-down list allows to set the area to the left, center or the right directly without using the numerical parameters. The "%" applies on the width of your screen and will deformate your area. |
10 |
Set the Y position of your area. By default, units are in pixels. |
11 |
Set the witdh of your area. By default, units are in pixels. |
12 |
Set the height of your area. |
13 |
Allows to choose a typography for your text. |
14 |
Allows to choose a color for your text. |
15 |
Allows to choose a size for your text. |
16 |
Enable/Disable the bold on your text. |
17 |
This zone allows to add text contents in your area. Empty area won't apply any text. |
18 |
Activate delay of you area between the activate and deactivate states (ms). |
19 |
Allows to set the opacity value of your image. To the '0' value, the image is totally transparent, to '100' it is non-transparent. |
20 |
Set the display order of the image in the scene. Set a value if you have conflict between several images. |
21 |
Allows to display or hide an image with a transition on opacity parameters. |
22 |
Enable/Disable the transparency of your PNG. |
23 |
Enable/Disable the PlugIT when the application starts. |
Event |
|
Loaded |
Execute an action when the instance starts. |
Activate |
Enable the area. |
Out |
Enable when the cursor leaves the zone. |
In |
Enable when the cursor enters the zone. |
Shown |
This events activates when the area is displayed. |
Hidden |
This events activates when the area is hidden. |
Action |
|
Input |
Coordinates in pixel in the 3D view of the device. |
Set size |
Change the area size. For this, edit the adapted link, adding a value under the "W H" form (for example 320 200). |
Set position |
Change the area position. For this, edit the adapted link, adding a value under the "X Y" form (for example 10 25). |
Disable |
Disable the area. |
Enable |
Enable the area. |
Set label |
Allows to change the text. |
Hide |
Hide the area. |
Show |
Display the area. |
Change |
Allows to change the image. |
Set opacity |
Allows to modify the image opacity. |
