"WiiTools" PlugIT

The "WiiTools" PlugIT allows to parameter interactions allowing the Wiimote use or other accessories (Nunchuck, balance Board…) as an input interface with your application.

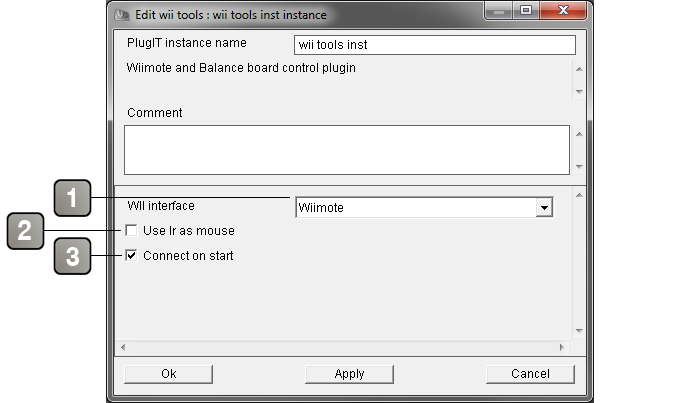

Parameters

1

Allows to select the device of your choice.

WiiMote
WiiMote + Nunchuck
Motion Plus (not available)
Motion Plus + Nunchuck (not available)
Wii Balance Board

2

Use the infrared mode as a mouse.

3

Connect the controller when the application starts.



Action

Connect

Connect the device.

Disconnect

Disconnect the device.

Set leds

Edit leds, for this you need to edit the link value, in the form: 0 0 0 0.
Each number corresponds to a LED. Change the value to 1 in order to turn on the wanted LED.
example: 0 0 1 0 will turn on the 3rd LED.

Start rumble

Start the device vibration.

Stop rumble

Stop the device vibration.

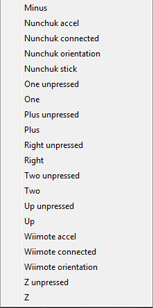

Wii tools events correspond to each keys of the devices.
