This PlugIT allows to make a connexion to a VRPN server and to read analogic, buttons and tracker datas.

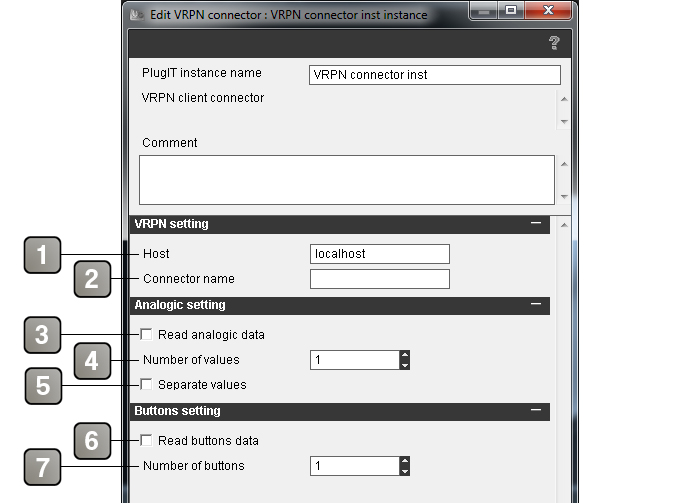

Parameters |
|
1 |
Server adress, "localhost" by default |
2 |
Device name, for example "Mouse0" (if the complete adress is "Mouse0@localhost"). |
3 |
Enables the analogic datas reading. |
4 |
Sets the value of analogic values of the flow. |
5 |
Creates an event per value if checked. |
6 |
Enables the reading of buttons. |
7 |
Sets the number of buttons. |
Parameters |
|

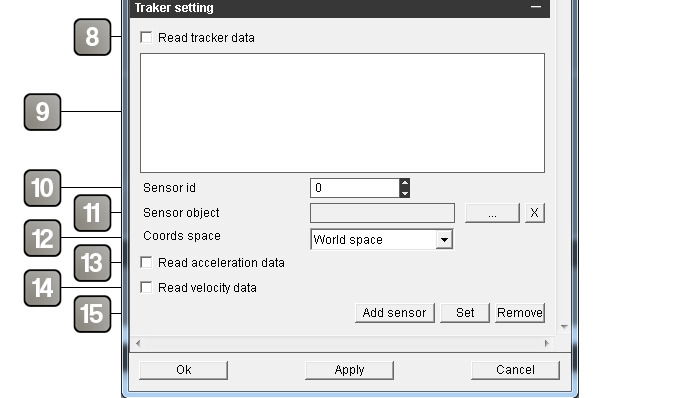

8 |
Enables the tracker reading. |
9 |
Trakers list. |
10 |
Sensor Id. |
11 |
Object handled by the tracker (optionnal). |
12 |
Coordinate space switcher. |
13 |
Enables the reading of acceleration datas on this sensor. |
14 |
Enables the reading of velocity datas on this sensor. |
15 |
Adds, redefines or removes a sensor. |
Events |
|
Control |
Link datas with navigation PlugITs. Enable when 3 analogic datas or more are available. |
Analog data ou Analog0 data |
Analogic datas if activated. |
Button0 pressed |
Sends when the "0" button is pushed if activated. |
Button0 released |
Sends when the "0" button is released if activated. |
Sensor0 position |
Position and rotation of the "0" sensor (index) if activated. |
Sensor0 control |
Position and rotation value relative to the last value of the "0" sensor (index), if activated. |
Sensor0 acceleration |
Acceleration of the "0" sensor if activated. |
Sensor0 velocity |
Velocity of the "0" sensor if activated. |
