"Myo" PlugIT
The "Myo" PlugIT allows to connect the Armband Myo device from Thalmic Labs..
The Myo device allows to detect the hand motion and the arm orientation.

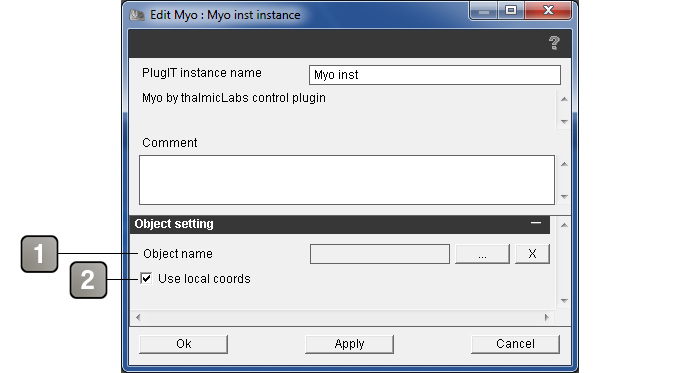

Parameters |
|
1 |
Allows to link an object to the Myo. |
2 |
Allows to use coordinates in the local tag of the object. |
Action |
|
Vibrate |
Enable the Myo vibration. The vibration duration can be changed by adding the values 0.1 or 2 in the link parameter. |
Event |
|
Control |
Send the control informations to use to PlugITs owning the "Control" action. |
Orientation |
Set the Myo orientation value. |
Accel |
Set the Myo acceleration vector value. |
Arm recognized |
Send 0 if the right arm is detected, 1 if it is the left arm. |
Arm lost |
Sends if the arm is no longer detected. |
Connected |
Sends if the Myo is connected. |
Disconnected |
Sends if the Myo is disconnected. |
Rest |
Sends when the "Rest" pose is detected. |
Fist |
Sends if the "Flat" pose is detected. |
Wave in |
Sends if the "Wave in" pose is detected. |
Wave out |
Sends if the "Wave out" pose is detected. |
Finger spread |
Sends if the "Finger spread" pose is detected./p> |
Thumb to pinky |
Sends if the "Thumb to pinky" pose is detected. |
